Circotherm
Thermooil Boiler

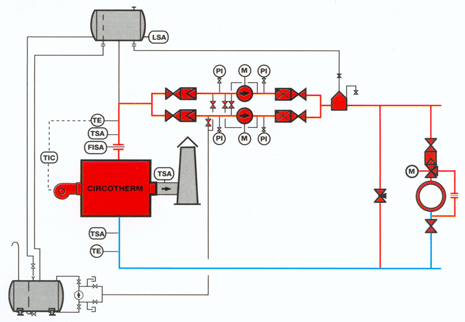

Thermooil Boiler safety

Safety

  • Cold start thermostat reduces burner capacity until the minimum viscosity of thermooil is being reached.
  • Combustion is blocked until the pump is running properly.
  • Flow monitoring by type-tested differential pressure system.
  • If the minimum flow falls short the burner stops at once.
  • Safety thermostat controls max. supply temperature and stops the burner in case of overheating.
  • Flue gas thermostat switches off the burner if the allowed temperature will be exceeded.
  • All safety appliances in addition give optical and acoustic alarm. The source of error is shown at the control cabinet.
  • All appreciated safety devices are type-tested according to German Standard DIN 4754 and VDI 3033.
